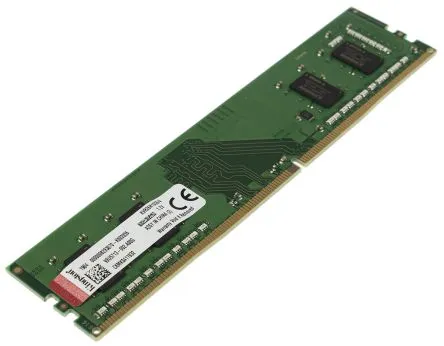

Desktop RAM Kingston 32GB DDR4 3200 PC4-25600

Desktop RAM KINGSTON 32GB DDR4 3200 PC4-25600 Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 8 internal banks; 2 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.18” (30.00mm) RoHS Compliant and Halogen-Free .
