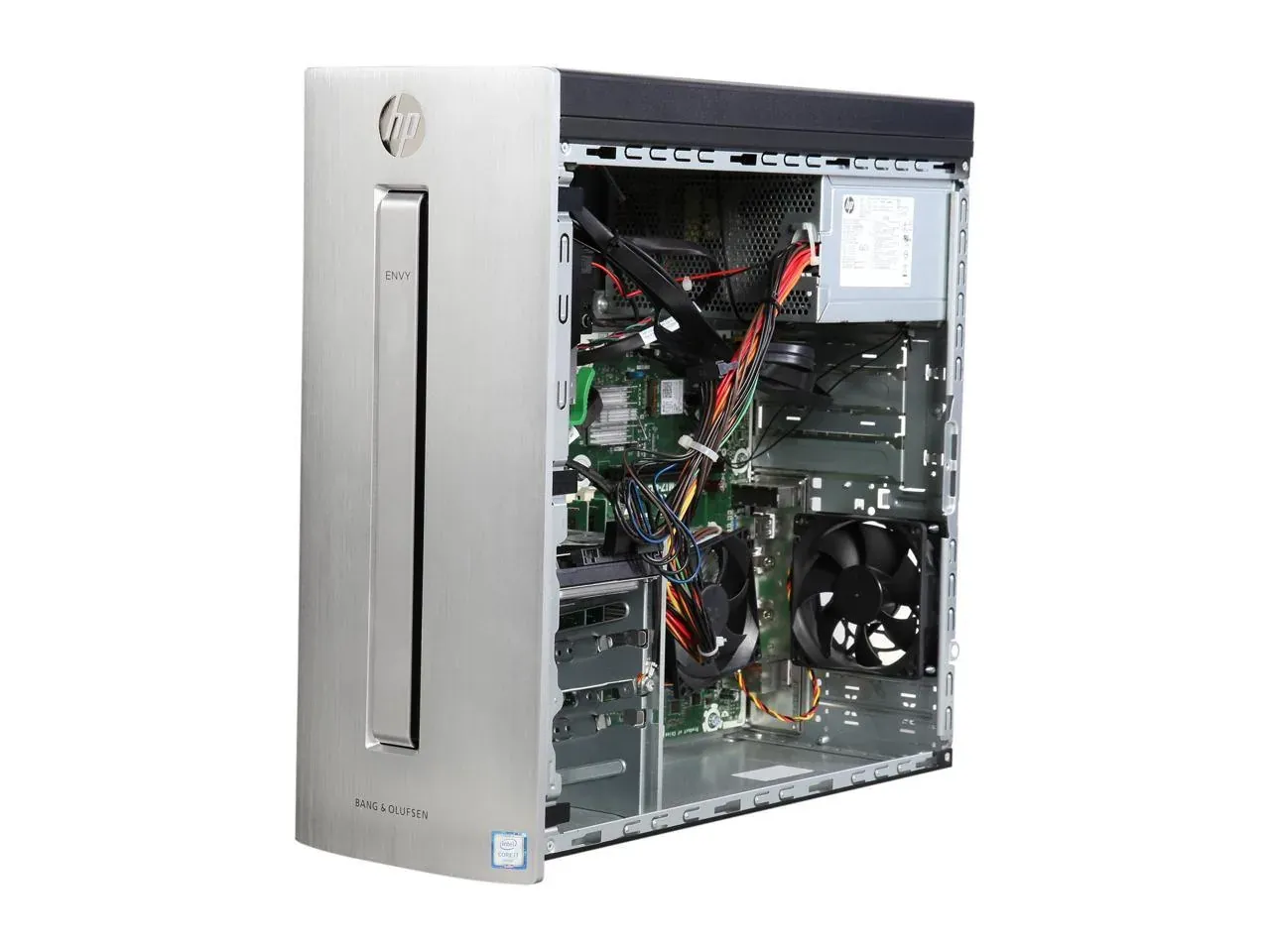

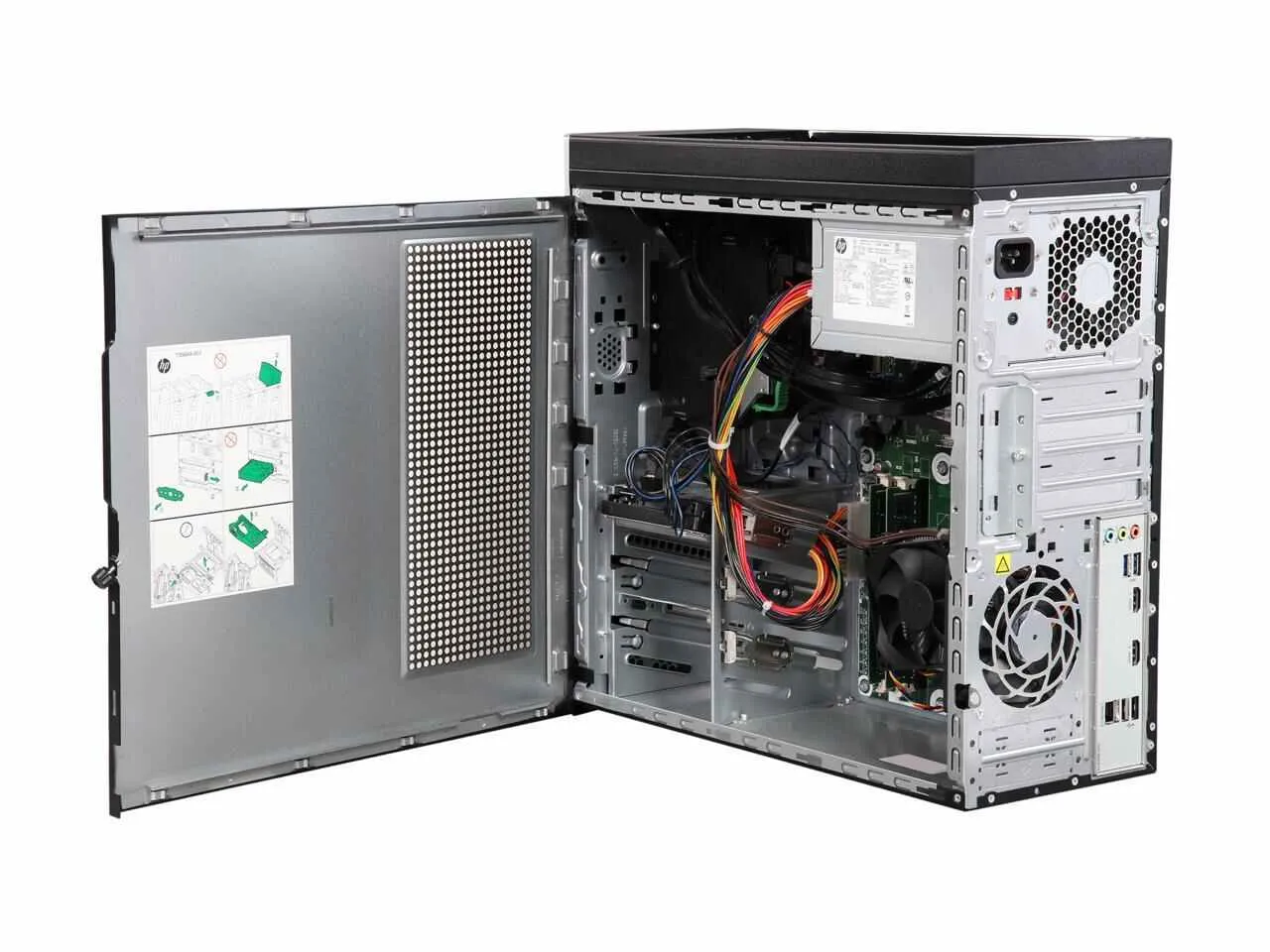

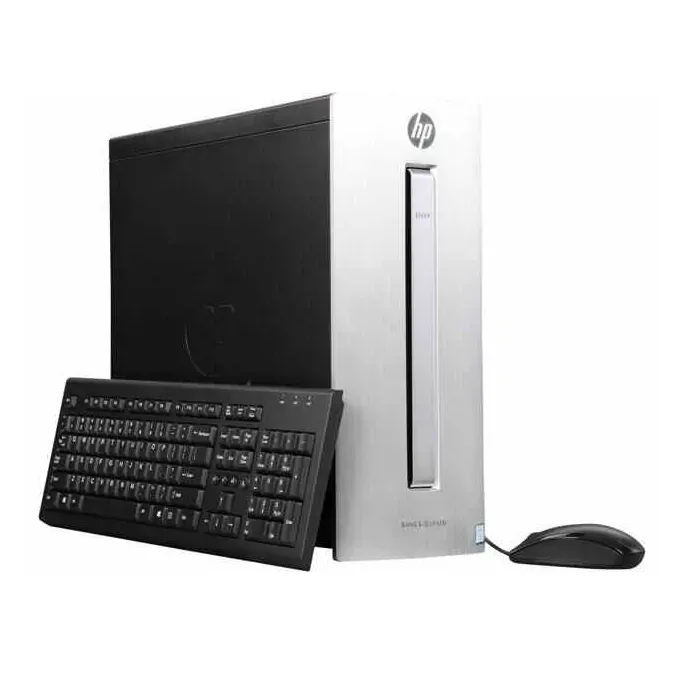

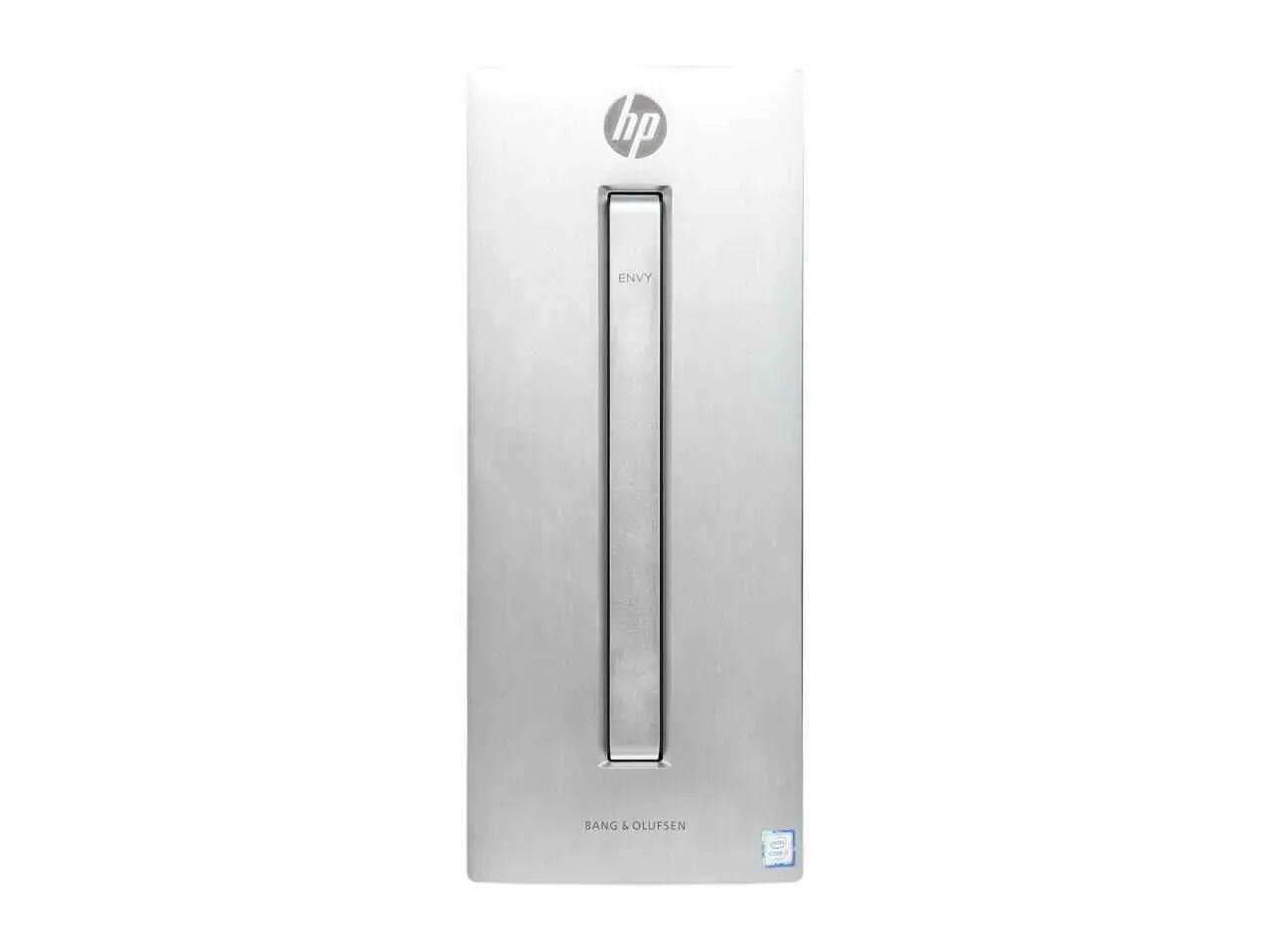

HP Envy 750-287C i7

HP ENVY 750-287C i7 Product Release Information Product Number T4A40AA Motherboard Odense Figure : Odense motherboard top view Manufacturer: Pegatron Form factor: uATX – 24×24 cm (9.4×9.4 in) Chipset: H110 Memory sockets: 2 x DDR3L Processor socket: LGA 1151 Expansion Slots: 1 PCI Express x16 (Gen 3.0) 1 PCI Express x1 (Gen 2.0) One M.2 socket 1, key A For more details, see Odense motherboard specifications . Processor Intel Core i7-6700 CPU speed: 3.4 GHz (max turbo boost – 4.0 GHz) CPU cores: 4 CPU Cache: 8 MB TDP: 65 W Socket: LGA 1151 Memory 8 GB Amount: 8 GB Memory upgrade information Dual channel memory architecture Two 240-pin DDR3L DIMM sockets Supports the following: Supports 1 GB, 2 GB, 4 GB and 8 GB DIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB (unbuffered) on 64-bit computers NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video Graphics Integrated graphics Integrated Intel HD Graphics Sound/audio Integrated audio Audio Codec: ALC3863-CG 5.1 channel support Audio jack presence detection Networking Integrated Bluetooth 4.0 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology Interface: M.2 Transmission standards: 802.11 a/ b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8161 Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Ethernet Hard Drive 1 TB Size: 1 TB Interface: SATA Rotational Speed: 7200 rpm CD/DVD Disc Drive Ultra Slim Tray SuperMulti DVD Burner drive Memory Card Reader 7-in-1 multimedia card reader Figure : View of memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Memory Stick Memory Stick Select Memory Stick PRO Memory Stick MagicGate Computer Case Chassis Height: 40.11 cm (15.79 in) Width: 16.51 cm (6.50 in) Depth: 40.49 cm (15.94 in) Weight 9.85 kg (21.72 lbs) – without packaging Power Supply Internal 300 W PSU 300 W uATX aPFC internal power supply I/O Ports Top I/O ports USB 3.0: 2 USB 2.0: 2 Headphone: 1 Microphone: 1 Back I/O ports Figure : Odense back I/O panel USB 2.0: 2 LAN (Ethernet) HDMI: 2 USB 3.0: 2 Audio: Line in Audio: Line out Audio: Microphone Keyboard, Mouse and Input Devices HP USB keyboard Interface: USB Dimensions (approximately): Cable length: 1.8 m (5 ft, 11 in) Height: 26.5 mm (1.0 in) Width: 133.0 mm (5.2 in) Length: 380.2 mm (15.0 in) Special buttons*: Volume up Volume down Mute NOTE: * Buttons are not configurable HP USB optical mouse Interface: USB Dimensions (approximately): Cable length: 1.8 m (5 ft, 11 in) Length: 114.6 mm (4.5 in) Width: 63.2 mm (2.5 in) Height: 37.2 mm (1.5 in) Operating System Microsoft Windows 10 Home High End (64-bit)
