HP Pavilion 22-C0009 All-in-One AMD A9-9425, 8GB, 250GB

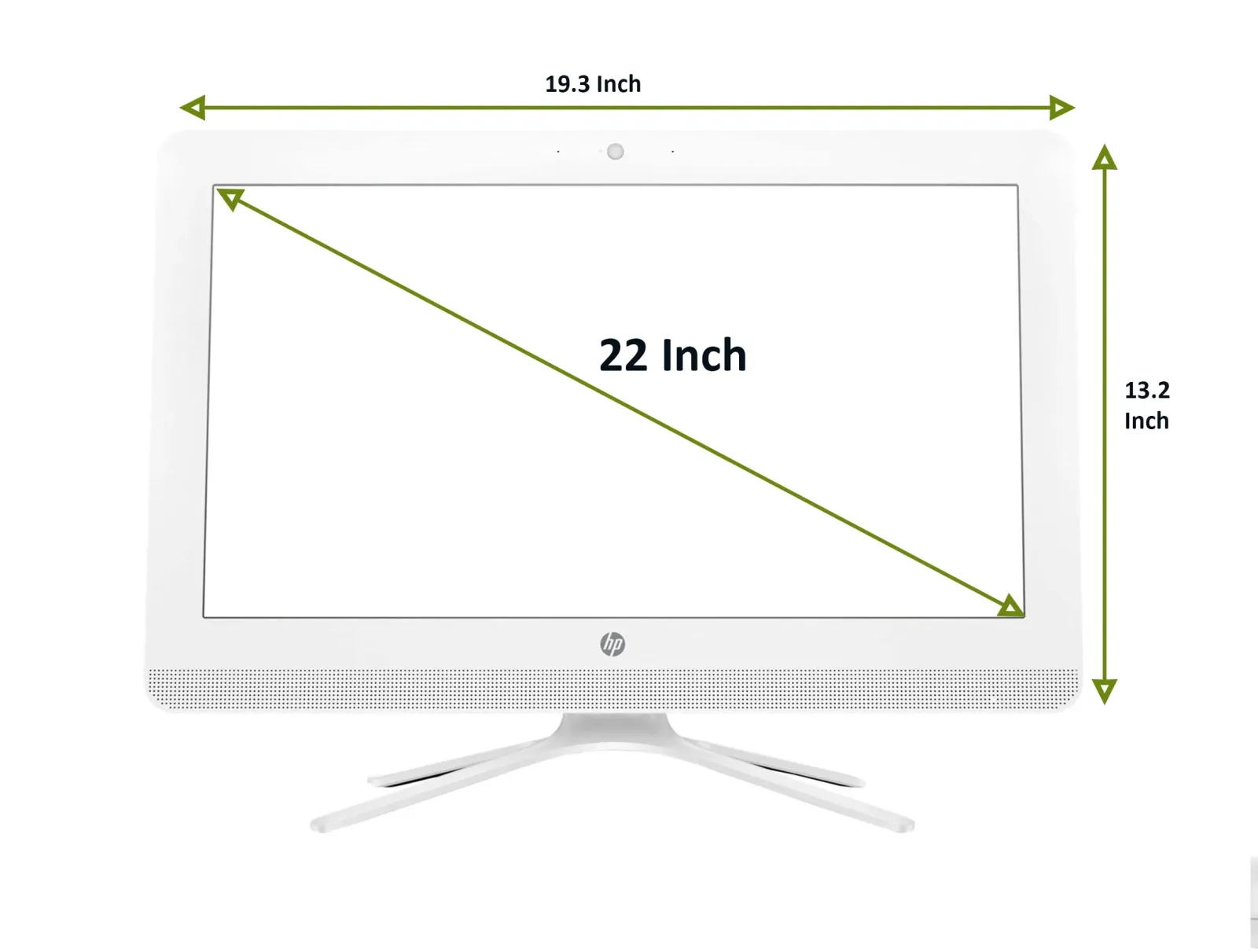

HP Pavilion 22-C0009 All-in-One AMD A9-9425, 8GB, 250GB Product release information Product number 3LA38AA Display 54.61 cm (21.5 in) full high-definition IPS WLED-backlit three-sided borderless touchscreen display (1920 x 1080) Size: 54.61 cm (21.5 in) Display resolution: 1920 x 1080 Motherboard Rhone Figure : Rhone motherboard top view Figure : Rhone motherboard bottom view Form factor: Customized Chipset: The chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package. Memory sockets: 1 DDR4 SODIMM Expansion Slots: One M.2 socket 1, 2230 type for WLAN One M.2 socket 3, 2280 type for SSD One M.2 slot for dGPU For more details, see Rhone motherboard specifications . Processor AMD A9-9425 CPU speed: 3.1 GHz (3.7 GHz – max turbo boost) CPU cores: 2 CPU Cache (L2): 1 MB TDP: 15 W (cTDP – 10 W) Integrated graphics: Radeon R5 Series Memory 8 GB Amount: 8 GB Speed: PC4-17000 MB/s Type: DDR4-2133 Memory upgrade information Single channel memory architecture DDR4 SODIMM (260-pin) socket Supports the following: PC4-17000 (DDR4-2133) Supports 2 GB, 4 GB, 8 GB DDR4 SODIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB on 64-bit systems NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video graphics Integrated graphics AMD Radeon Graphics Sound/Audio Integrated audio Audio Codec: Realtek ALC3247 Audio jack presence detection Speakers 2-pins internal 2 W speaker header x 2 Networking Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 2 x 2 technology Interface: M.2 Transmission standards: 802.11 a/b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8111GSH Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Gigabit Ethernet Hard drive 250GB Size: 250GB Interface: SSD SATA CD/DVD disc drive DVD Writer Memory card reader 3-in-1 Memory card reader Figure : Memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Computer case All-in-One Height: 48.3 cm (19.0 in) Width: 24.8 cm (9.8 in) Depth: 59.8 cm (23.6 in) Weight: 7.76 kg (17.11 lbs) packaged Front of the system Figure : Front of the system Webcam Screen Optical drive Power button Card reader Speakers Back of the system Figure : Back of the system Optical drive Power button Back I/Os Stand Right side of the system Figure : Right side of the system Left side of the system Figure : left side of the system Power supply External 65 W (100V-240V) Total wattage: 65 W Output voltage: 19.5 V Output amps: 3.3 I/O ports Back I/O ports NOTE: The configuration might vary depending on your model. Figure : Back I/O ports Lock slot USB 2.0: 2 LAN (Ethernet) DC power in Power LED USB 3.1: 2 HDMI out Headphone/Microphone Disk activity LED Keyboard, mouse and input devices HP USB wired keyboard with volume control Cable: 1.9 m (6.2 ft) Dimensions (approximate): Height: 14.4 cm (5.7 in) Width: 41.0 cm (16.1 in) Depth: 2.23 cm (0.9 in) Special keys: Mute Volume down Volume up Previous track Play/Pause Next track Brightness down Brightness up Calculator HP USB wired optical mouse Cable: 2.0 m (6.6 ft) Travel distance: 0.5 mm +/- 0.25 mm Weight (approximate): 90 g Dimensions (approximate): Height: 11.9 cm (4.7 in) Width: 6.5 cm (2.6 in) Depth: 3.2 cm (1.3) HP Webcam NOTE: Chassis color might vary depending on your model. Figure : HP Webcam Webcam Webcam activity LED Microphones Operating System Microsoft Windows 10 Home (64-bit)
