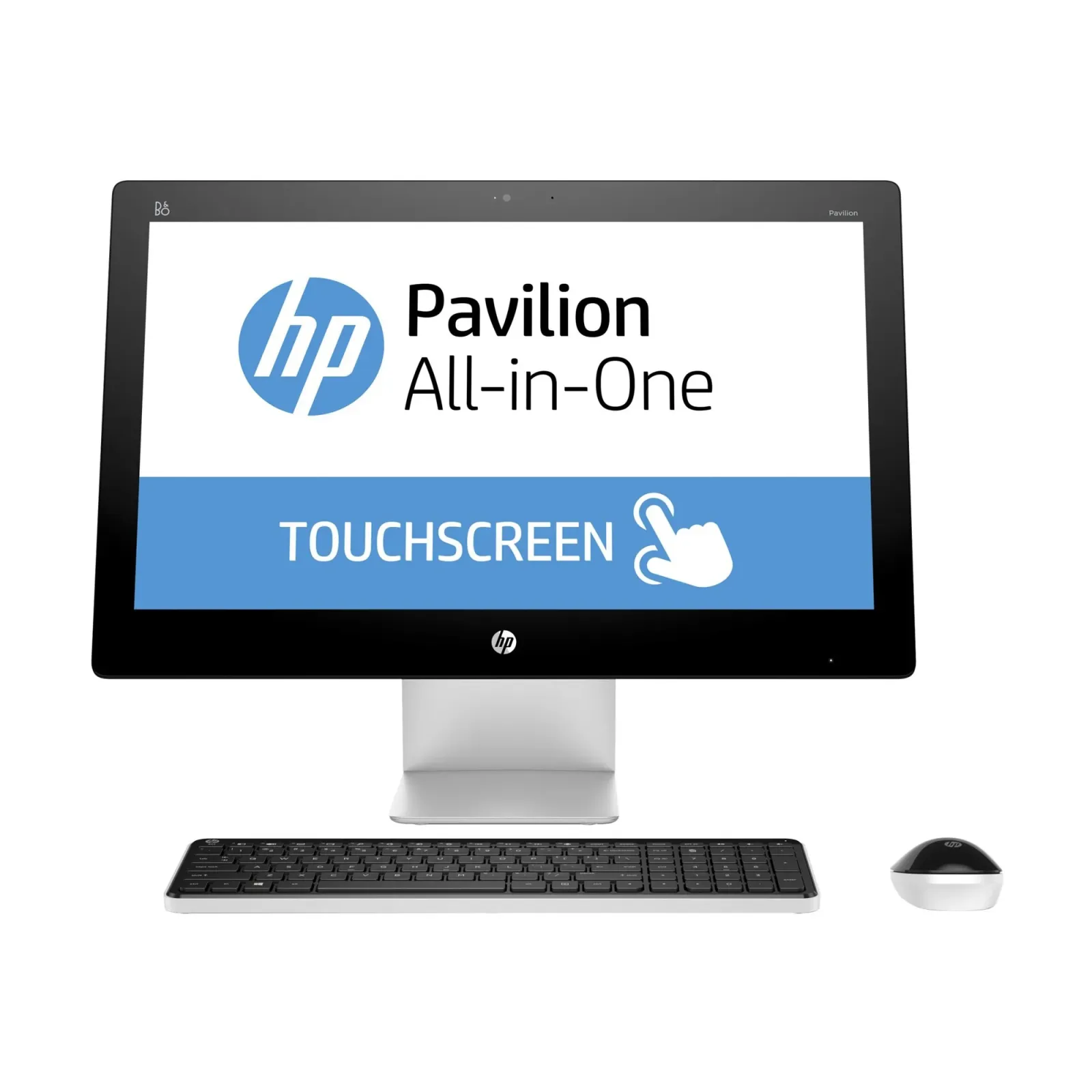

HP Pavilion 23-Q151 All-in-One i7 Touch White

HP PAVILION 23-Q151 ALL-IN-ONE i7 TOUCH WHITE Product Release Information Product Number N0B20AA Display 10-point touch-enabled 58.42 cm (23 in) diagonal widescreen IPS Full high-definition LED backlit display Size: 58.42 cm (23 in) diagonal Display resolution: 1920 x 1080 Aspect ratio: 16:9 Motherboard Crusher-U Figure : Crusher-U motherboard top view Manufacturer: Quanta Form factor: uATX: 28.3×20.0 cm (11.1×7.9 in) Chipset: Intel H81 Memory sockets: 2 x DDR3L Processor socket: LGA 1150 Expansion Slots: One M.2 slot for WLAN For more details, see Crusher-U motherboard specifications . Processor Intel Core i7 4785T TDP: 35 W Operating speed: Up to 2.2 GHz (up to 3.2 GHz turbo) Number of cores: 4 Socket: LGA 1150 Memory 8 GB Amount: 8 GB Speed: PC3-12800 MB/s Type: DDR3-1600 Memory upgrade information Dual channel memory architecture Two DDR3L SO-DIMMs (204-pin) sockets Supports PC3L-12800 (DDR3L-1600) Supports 1 GB, 2 GB, 4GB and 8 GB SO-DIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB (unbuffered) on 64-bit computers NOTE: Maximum memory shown reflects the capability of the hardware and can be limited furhter in the operating system. Video Graphics Intel Integrated HD Graphics Intel Graphics is combined with the installed processor. See the Processor upgrade information section of this document for detailed information. Sound/Audio Audio CODEC: Realtek ALC3228-CG Audio CODEC: Realtek ALC3228-CG Built-in speaker amplified with 1.5 W per channel Audio jack presence detection Speakers 2-Watt speakers Networking Integrated Bluetooth 4.0 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology Interface: M.2 Transmission standards: 802.11 a/ b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8161GSH Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Gigabit Ethernet Hard Drive 1 TB Size: 1 TB Interface: SATA Rotational Speed: 7200 rpm CD/DVD disc drive Ultra Slim Tray SuperMulti DVD Burner drive Data transfer rates up to 3,600 KB/s (CD read/write) Data transfer rates up to 10,800 KB/s (DVD read/write) Memory Card Reader 3-in-1 Memory card reader Figure : View of memory card reader Supports the following cards: Secure Digital™ (SD) Secure Digital High Capacity (SDHC) SDXC Computer Case All-in-One Height: 45.0 cm (17.7 in) Width: 56.9 cm (22.4 in) Depth: 19.3 cm (7.6 in) Weight: 8.05 kg (17.75 pounds) unpackaged Front of the system Figure : Front of the system Webcam and microphone Screen Optical drive Power button Speakers Bottom I/O ports Back of the system Figure : Back of the system Stand Left side of the system Figure : Left side of the system Right side of the system Power Supply External 90W (100V-240V) Total wattage: 90W Nominal input voltage range: 100-240V (50-60Hz) Dimensions: 134 mm x 58 mm x 31 mm (5.2 x 2.2 x 1.2 inches) Output voltage: 19.5V I/O Ports Back I/O ports Figure : MarcusT back I/O ports DC power input Power activity LED LAN (Ethernet) USB 2.0: 4 HDMI Bottom I/O ports Figure : MarcusT bottom I/O ports USB 3.0: 2 Headphone/Microphone combo port Memory card reader Keyboard, Mouse and Input Devices Wireless keyboard Wireless technology: Two-way radio frequency Batteries: 2 AAA alkaline batteries Battery life: 10 months (typical) Dimensions (approximate): Height: 26.5 mm (1.0 inch) Width: 133.0 mm (5.2 inches) Length: 380.2 mm (15.0 inches) Special keys: Mute Volume Up Volume Down Wireless mouse Wireless technology: Two-way 2.4GHz Radio Frequency Batteries: 2 AA alkaline Battery life: 6-12 months (typical) Buttons: 2 primary buttons Clickable scroll wheel Dimensions (approximate): Length: 114.8 mm (4.5 inches) Width: 63.4 mm (2.5 inches) Height: 37.2 mm (1.5 inches) Integrated webcam with microphone NOTE: The webcam configuration might vary depending on your model. Figure : Integrated webcam with microphone Web camera Webcam activity LED Microphone Operating System Microsoft Windows 10 Home (64-bit)
