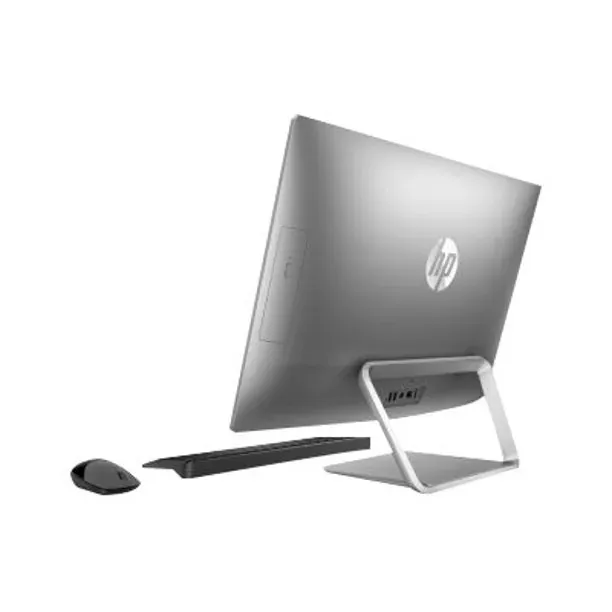

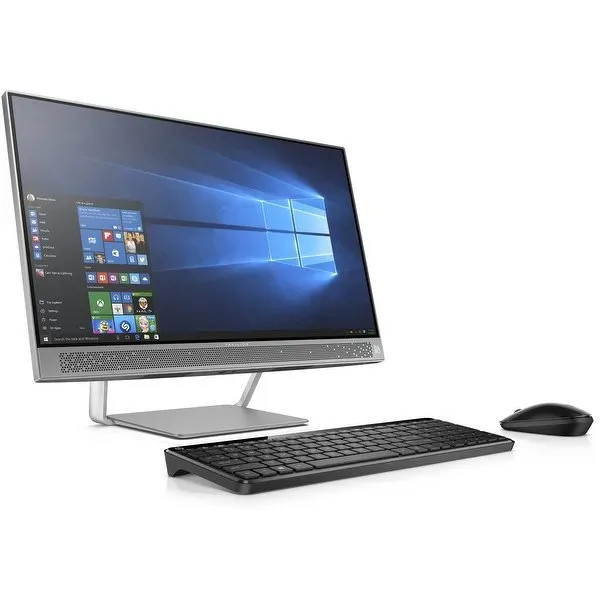

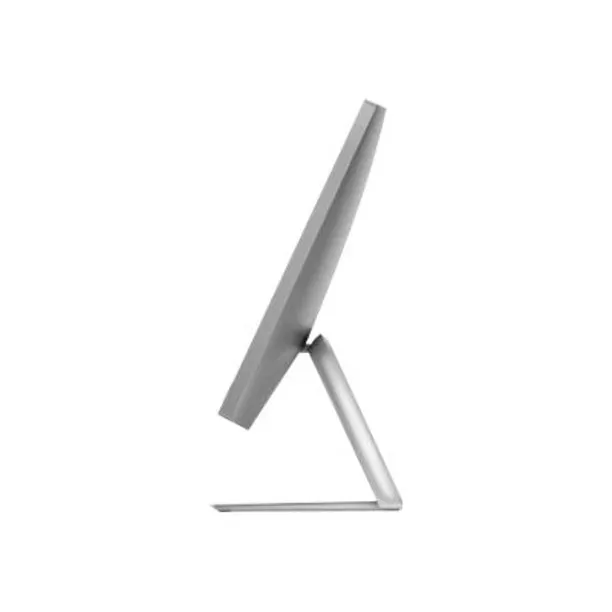

HP Pavilion 24-B010 All-in-One AMD A9

HP PAVILION 24-B010 ALL-IN-ONE AMD A9 Product Release Information Product Number V8P37AA Display 60.45 cm (23.8 in) diagonal widescreen full high-definition IPS WLED-backlit edge-to-edge display (1920 x 1080) Size: 60.45 cm (23.8 in) diagonal Display resolution: 1920 x 1080 Motherboard Samui-A9 Form factor: Customized: 27.5×18.1 cm (10.8×7.1 in) Memory sockets: 2 x DDR4 Expansion Slots: One M.2 slot for WLAN For more details, see Samui-A9 motherboard specifications . Processor AMD A9-9410 (Stoney Ridge) CPU speed: 2.9 GHz (3.5 GHz max turbo boost) CPU cores: 2 CPU Cache: 1 MB L2 TDP: 15 W (cTDP – 10/25 W) Integrated graphics: Radeon R5 Series Memory 8 GB Amount: 8 GB Speed: PC4-17000 MB/s Type: DDR4-2133 Memory upgrade information Single channel memory architecture Two DDR4 SODIMM (260-pin) sockets Supports up to PC4-17000 (DDR4-2133) Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB (unbuffered) on 64-bit systems NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video Graphics Integrated graphics Integrated Radeon R5 Series Graphics Sound/Audio Integrated audio Audio Codec: Realtek ALC3252 Audio jack presence detection Speakers Integrated speakers Networking Integrated Bluetooth 4.0 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology Interface: M.2 Transmission standards: 802.11 a/ b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8161GSH Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Gigabit Ethernet Hard Drive 1 TB Size: 1 TB Interface: SATA Rotational Speed: 7200 rpm CD/DVD Disc Drive Ultra Slim Tray SuperMulti DVD Burner drive Memory Card Reader 3-in-1 Memory card reader Figure : View of memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Computer Case All-in-One Height: 44.7 cm (17.6 in) Width: 57.9 cm (22.8 in) Depth: 19.1 cm (7.5 in) Weight: 8.43 kg (18.59 lbs) unpackaged Front of the system Figure : Front of the system Webcam and microphone Screen Optical drive Power button Speakers Bottom I/Os Back of the system Figure : Back of the system Optical drive Power button Back I/Os Stand Left side of the system Figure : Left side of the system Right side of system Figure : Right side of system Optical drive Power Supply External 90W (100V-240V) Total wattage: 90W Nominal input voltage range: 100-240V (50-60Hz) Dimensions: 134 x 58 x 31 mm (5.2 x 2.2 x 1.2 in) Output voltage: 19.5V I/O Ports Back I/O ports Figure : FangioT 24 back I/O ports Lock slot USB 2.0: 2 USB 3.0: 1 DC power in Power LED LAN (Ethernet) HDMI Disk activity LED Bottom I/O ports Figure : FangioT 24 Bottom I/O ports USB-C: 1 USB 3.0 charging: 1 Headphone/Microphone: 1 Memory card reader Keyboard, Mouse and Input Devices Wireless keyboard Wireless technology: Two-way radio frequency Batteries: 2 AAA alkaline batteries Battery life: 10 months (typical) Dimensions (approximate): Height: 26.5 mm (1.0 in) Width: 133.0 mm (5.2 in) Length: 380.2 mm (15.0 in) Special keys: Mute Volume Up Volume Down Wireless mouse Wireless technology: Two-way 2.4GHz Radio Frequency Batteries: 2 AA alkaline Battery life: 6-12 months (typical) Buttons: 2 primary buttons Clickable scroll wheel Dimensions (approximate): Length: 114.8 mm (4.5 in) Width: 63.4 mm (2.5 in) Height: 37.2 mm (1.5 in) HP TrueVision HD Camera Figure : HP TrueVision HD Camera Webcam Webcam activity LED Microphones Operating System Microsoft Windows 10 Home High End (64-bit)
