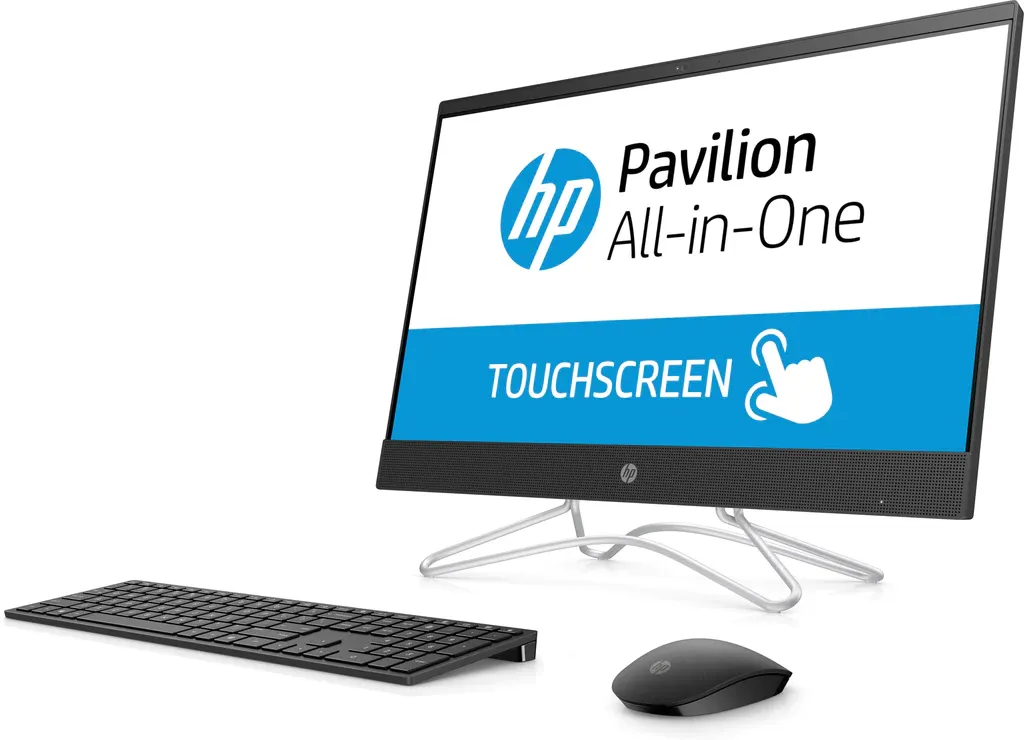

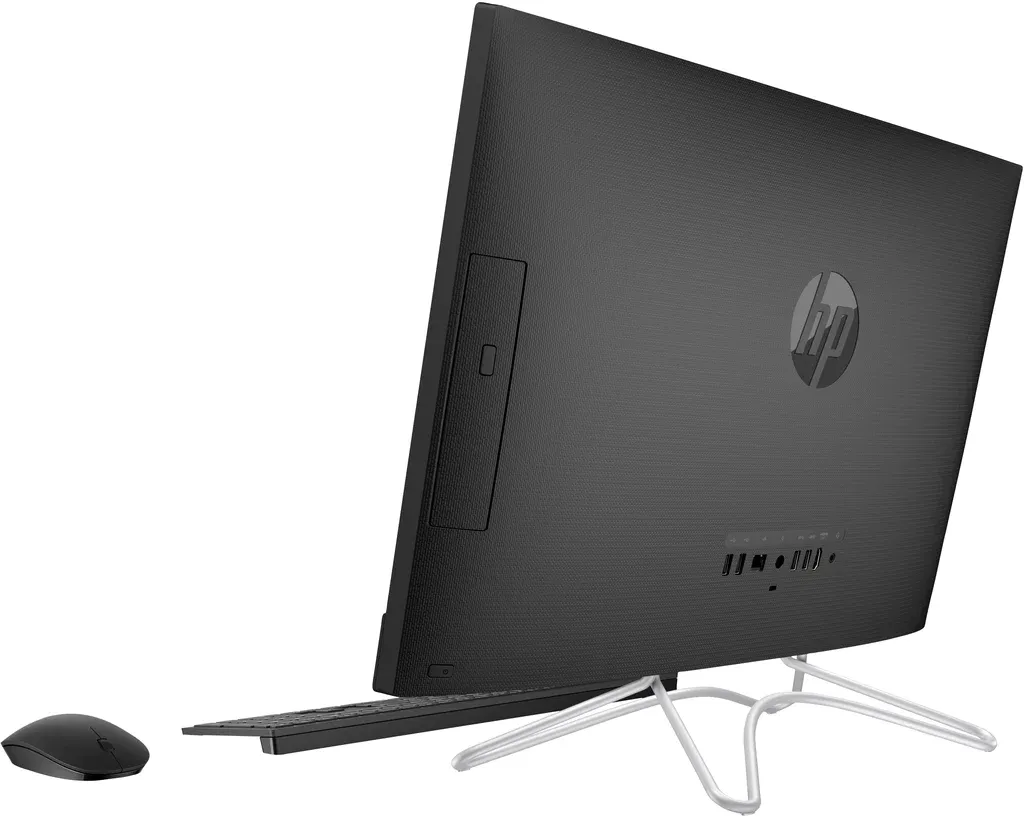

HP Pavilion 24-F0028CY All-in-One AMD A9 24″ Touch

HP PAVILION 24-F0028CY ALL-IN-ONE AMD A9 24″ TOUCH Product release information Product number 3LC12AA Display 60.45 cm (23.8 in) full high-definition IPS WLED-backlit three-sided borderless touchscreen display (1920 x 1080) Size: 60.45 cm (23.8 in) Display resolution: 1920 x 1080 Motherboard Rhone Figure : Rhone motherboard top view Figure : Rhone motherboard bottom view Form factor: Customized Chipset: The chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package. Memory sockets: 1 DDR4 SODIMM Expansion Slots: One M.2 socket 1, 2230 type for WLAN One M.2 socket 3, 2280 type for SSD One M.2 slot for dGPU For more details, see Rhone motherboard specifications . Processor AMD A9-9425 (Stoney Ridge) CPU speed: 3.1 GHz (3.7 GHz – max turbo boost) CPU cores: 2 CPU Cache (L2): 1 MB TDP: 15 W (cTDP – 10 W) Integrated graphics: Radeon R5 Series Memory 8 GB Amount: 4 GB Speed: PC4-17000 MB/s Type: DDR4-2133 Memory upgrade information Single channel memory architecture DDR4 SODIMM (260-pin) socket Supports the following: PC4-17000 (DDR4-2133) Supports 2 GB, 4 GB, 8 GB DDR4 SODIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB on 64-bit systems NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video graphics Integrated graphics AMD Radeon Graphics Sound/Audio Integrated audio Audio Codec: Realtek ALC3247 Audio jack presence detection Speakers 2-pins internal 2 W speaker header x 2 Networking Wireless LAN 802.11a/b/g/n/ac (1×1) and Bluetooth 4.2 M.2 Interface: M.2 Transmission standards: 802.11 a/b/g/n/ac LAN: 1000BASE-T Technology: Realtek RTL8111GSH Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Gigabit Ethernet Hard drive 1 TB Size: 1 TB Interface: SATA Rotational Speed: 7200 RPM CD/DVD disc drive DVD Writer Memory card reader 3-in-1 Memory card reader Figure : Memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Computer case All-in-One Height: 41.95 cm (16.5 in) Width: 54.09 cm (21.3 in) Depth: 20.41 cm (8.0 in) Weight: 9.34 kg (20.6 lbs) packaged Front of the system Figure : Front of the system Webcam Screen Optical drive Power button Card reader Speakers Right side of the system Figure : Right side of the system Right side of the system Figure : Right side of the system Left side of the system Figure : left side of the system Power supply External 65 W (100V-240V) Total wattage: 65 W Output voltage: 19.5 V Output amps: 3.3 Keyboard, mouse and input devices HP wireless keyboard with volume control Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP Effective distance (typical): 10 m (32.8 ft) Batteries: 2 AAA alkaline batteries Battery life: 12 months (typical) Dimensions (approximate): Height: 17 mm (0.7 in) Width: 114 mm (4.5 in) Length: 409 mm (16.1 in) Special keys: Mute Volume Up Volume Down HP optical mouse Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP Effective distance (typical): 10 m (32.8 ft) Batteries: 2 AAA alkaline Battery life: 5 months (typical) Tracking speed (typical): 10 in/s Accuracy: 15% Buttons: 2 primary buttons Scroll wheel Dimensions (approximate): Length: 119.5 mm (4.7 in) Width: 65.0 mm (2.6 in) Height: 31.6 mm (1.2 in) HP Webcam NOTE: Chassis color might vary depending on your model. Figure : HP Webcam Webcam Webcam activity LED Microphones Operating System Microsoft Windows 10 Home (64-bit)
