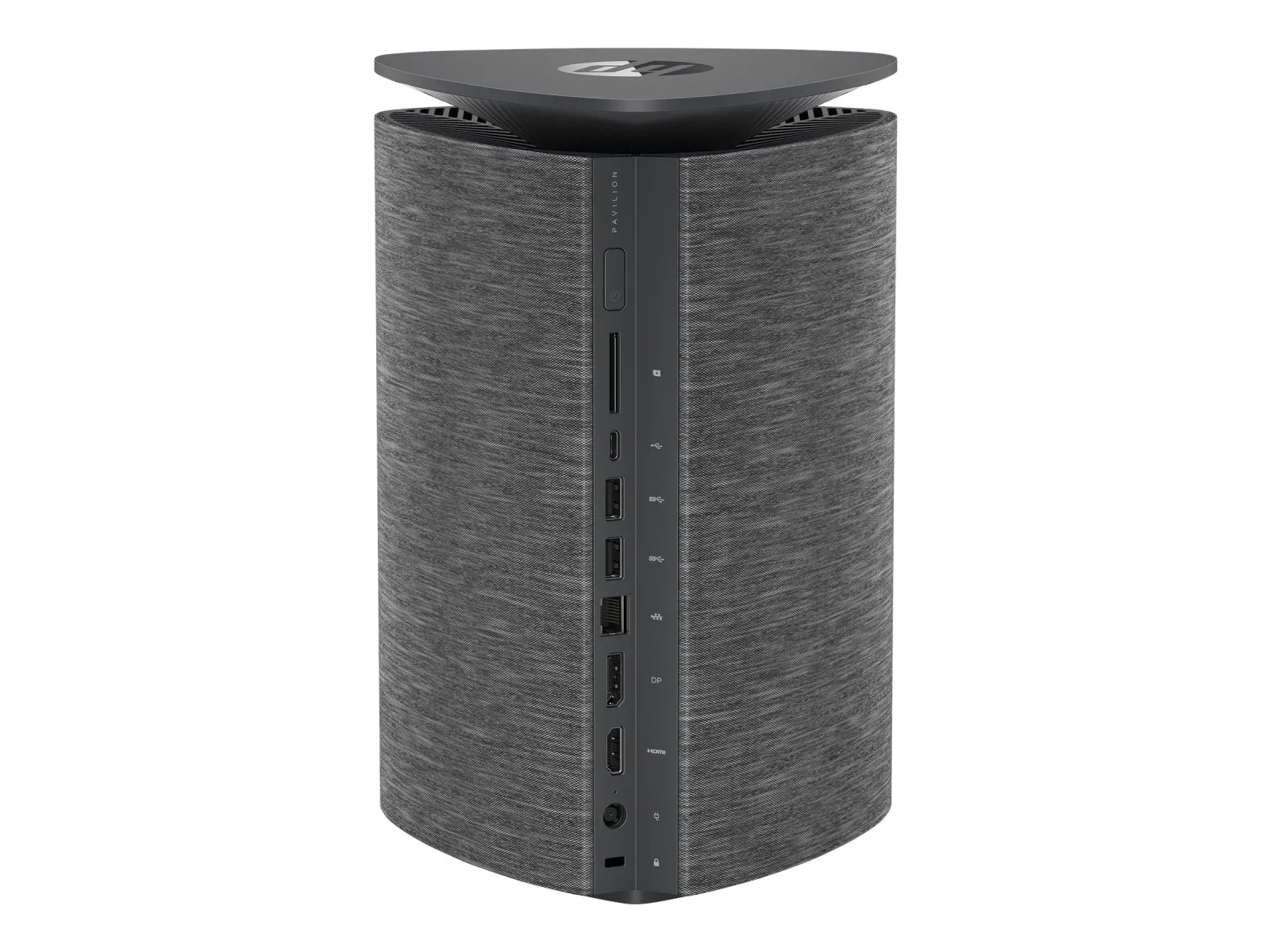

HP Pavilion Wave 600-A014 i3

HP PAVILION WAVE 600-A014 i3 Product Release Information Product Number X6F47AA Motherboard Lyon Figure : Lyon motherboard top view Figure : Lyon motherboard bottom view Form factor: uATX: 14.1×19.5 cm (5.6×7.7 in) Chipset: H170 Memory sockets: 2 x DDR4 Processor socket: LGA 1151 Expansion Slots: One M.2 socket 1, key A One WLAN LED header One M.2 socket 3, key M For more details, see Lyon motherboard specifications . Processor Intel Core i3-6100T CPU speed: 3.2 GHz CPU cores: 2 CPU Cache: 3 MB TDP: 35 W Socket: LGA 1151 Processor upgrade information Memory 8 GB Amount: 8 GB Speed: PC4-17000 MB/s Type: DDR4-2133 Memory upgrade information Dual channel memory architecture Two DDR4 UDIMM (288-pin) sockets Supports up to PC4-17000 (DDR4-2133) Supports 4 GB and 8 GB UDIMMs Supports up to 4 GB on 32-bit systems NOTE: 32-bit systems cannot address a full 4.0 GB of memory. Supports up to 16 GB (unbuffered) on 64-bit computers NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system. Video Graphics Integrated graphics Integrated Intel HD Graphics Sound/Audio Integrated audio Audio Codec: ALC3265-CG Audio jack presence detection Networking Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology Interface: M.2 Transmission standards: 802.11 a/b/g/n/ac Dual band: 2.4 GHz and 5.0 GHz LAN: 1000BASE-T Technology: Realtek RTL8161 Data transfer speeds: up to 10/100/1000 Mb/s Transmission standards: 1000BASE-T Ethernet Hard Drive 1 TB Size: 1 TB Interface: SATA Rotational Speed: 7200 rpm Memory Card Reader 3-in-1 memory card reader Figure : Tesla memory card reader Supports the following cards: Secure Digital (SD) Secure Digital High Capacity (SDHC) SDXC Computer Case Chassis Height: 23.50 cm (9.25 in) Width: 17.30 cm (6.81 in) Depth: 16.81 cm (6.62 in) Weight 2.90 kg (6.39 lb) – without packaging Power Supply External 150 W PSU Total wattage: 150 W Output voltage: 19.5 V Efficiency: 89% I/O Ports Front I/O ports USB 3.0: 1 Headphone/Microphone jack: 1 Back I/O ports Figure : Lyon back I/O panel Power button Power indicator LED Memory card reader USB 3.0-Type C: 1 USB 3.0: 2 LAN (Ethernet) DisplayPort HDMI HDD activity LED DC power in Keyboard, Mouse and Input Devices Wireless keyboard Wireless technology: Two-way radio frequency Batteries: 2 AAA alkaline batteries Battery life: 10 months (typical) Dimensions (approximate): Height: 26.5 mm (1.0 in) Width: 133.0 mm (5.2 in) Length: 380.2 mm (15.0 in) Special keys: Mute Volume Up Volume Down Wireless mouse Wireless technology: Two-way 2.4GHz Radio Frequency Batteries: 2 AA alkaline Battery life: 6-12 months (typical) Buttons: 2 primary buttons Clickable scroll wheel Dimensions (approximate): Length: 114.8 mm (4.5 in) Width: 63.4 mm (2.5 in) Height: 37.2 mm (1.5 in) Operating System Microsoft Windows 10 Home (64-bit)
