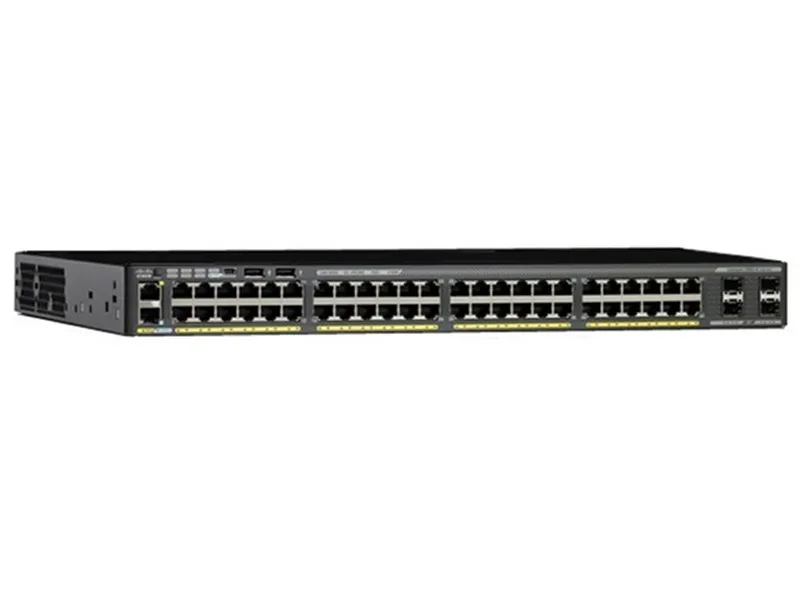

Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP

Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP Cisco WS-C2960X-48TS-L Specification Model WS-C2960X-48TS-L Brand Cisco Enclosure type Rack-mountable, 1U Ports 48 x 10/100/1000 Mbps + 4 x 1G SFP Network management interface 10/100 Mbps Ethernet (RJ-45) Available PoE power None Forwarding bandwidth 108 Gbps Maximum stacking number 8 switches Stack bandwidth 80 Gbps Forwarding performance 107.1 Mpps Switching bandwidth 216 Gbps Maximum active VLANs 1023 MAC address table size 16K (default) CPU APM86392 600 MHz dual-core RAM 512 MB Flash memory 128 MB Status indicators Per-port: link integrity, disabled, activity, speed, full duplex; System: system, RPS, stack link status, link duplex, link speed Console ports USB Type-B, Ethernet (RJ-45) Stacking cable Optional Power redundancy Optional (PWR-RPS2300) Voltage range (auto) 110–240 V AC Power consumption (operational) 0.051 kVA Width 17.5 in (44.5 cm) Depth 11.0 in (27.9 cm) Height 1.75 in (4.5 cm) Package weight 20.26 lb (9.19 kg) Device weight 9.4 lb (4.2 kg) Rack mounting kit Optional MTBF 476,560 hours Compliant standards IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS prioritization; IEEE 802.1Q VLAN; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.1ab (LLDP); IEEE 802.3ad; IEEE 802.3af; IEEE 802.3at; IEEE 802.3ah (100BASE-X single/multimode fiber only); IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, 1000BASE-T System software Cisco IOS LAN Base License NERGY-MGT-100-K9, EW-DO-100-DE Key features RPS support; jumbo frames; VLANs; voice VLAN; VTPv2; CDPv2; LLDP; 802.3ad LACP; PVST/PVST+; 802.1W/802.1S; PortFast/UplinkFast; port CoS trust and override; scheduling; priority queuing; configurable CoS priority queues; weighted tail drop; DSCP transparency Network security features SSH, SSL, SCP; RADIUS and TACACS+; SNMPv3 with cryptography; 802.1X; 802.1X accounting/MIB; 802.1X with port security; 802.1X with voice VLAN; 802.1X guest VLAN; 802.1X VLAN assignment; 802.1X MAC authentication bypass; BPDU guard and root guard; port security; private VLAN edge; storm control; block unknown unicast and multicast; IGMP snooping; IGMP filter/throttle Management and troubleshooting Auto-MDIX; TDR; UDLD; IP SLA responder; Layer 2/IP traceroute; SPAN; RSPAN; Express Setup; Device Manager; Cisco Network Assistant; Smartports and Advisor; Troubleshooting Advisor; drag-and-drop Cisco IOS upgrade; IP address via DHCP; autoinstall with saved configuration; configuration replace; DHCP auto image upgrade; DHCP port-based allocation; error-disable MIB Operating temperature (up to 1500 m / 5000 ft) 23°F to 113°F Operating temperature (up to 3000 m / 10,000 ft) 23°F to 104°F Short-term temperature (sea level) 23°F to 131°F Short-term temperature (up to 1500 m / 5000 ft) 23°F to 122°F Short-term temperature (up to 3000 m / 10,000 ft) 23°F to 113°F Short-term temperature (up to 4000 m / 13,000 ft) 23°F to 104°F Storage temperature (up to 4573 m / 15,000 ft) -13°F to 158°F Operating altitude Up to 10,000 ft Storage altitude Up to 13,000 ft Operating relative humidity 10% to 95% non-condensing Storage relative humidity 10% to 95% non-condensing
